Bearings are typically called the “joints of industry.” Obtaining the choice right directly impacts your tools’s integrity, life span, and upkeep prices. Lots of bearing failings do not come from low quality– they originate from incorrect selections. Points like load computation mistakes, forgeting rate limitations, or choosing the wrong lubrication approach. These tiny errors can trigger devices to break down early in its life span. This overview walks you via the entire selection procedure, offering engineers and purchase experts a clear course from assessing working conditions to verifying the best bearing design.
Component One: What You Need to Know Prior To Beginning
Prior to you open any bearing catalog, ask on your own one concern: What exactly does this maker require the bearing to do? The response hinges on 5 crucial locations:
1. Tons Qualities
Lots is the number one factor in birthing option. You need to find out three points:
Direction: Is it radial load (perpendicular to the shaft), axial lots (alongside the shaft), or a mix of both?
Dimension: Is it light, moderate, or heavy? Any kind of impact lots?
Nature: Is the lots stable or altering? How commonly do effect loads happen and exactly how solid are they?
Take a belt conveyor as an example. The bearings at the drive end take on radial loads from belt stress, the weight of the belt and rollers, plus the shaft setting up. When calculating, you have to consider different operating conditions– startup, normal operating, braking– and make use of the worst-case circumstance for your layout.
2. Rate Conditions
(bearings for steel mill)
Rate is another important aspect affecting birthing life. According to fatigue life theory, bearing life has an inverted relationship with speed. For variable speed problems, you require to determine the equal rate. Take a rotary kiln support roller– its rate might vary from 0.5 to 2.5 r/min. You would certainly need to weight the running time at each speed to obtain a comparable value.
One point to look out for: understanding only the optimum speed can screw up your lubrication technique. The lubricating substance you choose based on full throttle might not form a correct oil film at reduced rates. Also, if your maker has long still periods, you ought to mention that– or else close-by equipment vibrations can trigger false brinelling damages.
3. Required Service Life
Bearing life span is generally revealed as L10h (the variety of hours that 90% of a bearing group will get to prior to exhaustion spalling appears). An usual error is choosing an extremely long life– once L10h goes beyond 100,000 hours, the bearing size gets also huge. It becomes more difficult to lubricate, torque increases, and it becomes a lot more sensitive to minimum load. In the end, it could fall short for factors apart from tiredness.
4. Room Restraints
You must understand your available space limits from the beginning– shaft size range, real estate bore dimension, axial length restrictions. Once you know the matching shaft diameter and offered room, you can rapidly limit your choices.
5. Running Precision Demands
Many applications do simply fine with common precision bearings. However, for high-speed or high-precision equipment like device tool pins, you’ll need P5, P4, or even greater grades. Simply keep in mind that going for greater accuracy without a genuine demand will drive up expenses dramatically. Match the quality to your real demands.
Part Two: Matching Bearing Types to Functioning Conditions
When you have those specifications clear, the next step is to match the best bearing type based on tons instructions, size, speed, and imbalance tolerance.
1. Lots Direction: Radial, Axial, or Incorporated?
This is one of the most fundamental filter. It can direct you to a couple of prospects as soon as possible:

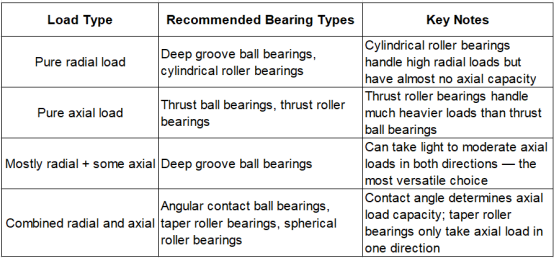

When the axial-to-radial lots ratio (Fa/Fr) changes, your option logic changes too. At low ratios, choose deep groove round bearings. At moderate ratios, use small-contact-angle angular call bearings or taper roller bearings. At high proportions, you’ll require large-contact-angle bearings, or take into consideration incorporating a thrust bearing with a radial bearing.
( Radial)
2. Tons Size: Ball Bearings or Roller Bearings?
This is a traditional selection:
Light or modest loads: Go with round bearings (deep groove or angular call). The point contact in between spheres and raceways gives lower rubbing, making them suitable for medium to high speeds.
Heavy or impact tons: You have to use roller bearings (cylindrical, round, or taper). Line get in touch with between rollers and raceways offers a lot higher lots capacity and much better effect resistance.
3. Speed: Round Bearings for Broadband, Roller Bearings for Low
Generally speaking, ball bearings have higher rate limits than roller bearings. For high-speed applications (over 1000 r/min), put round bearings on top of your checklist. When you need the highest possible rate with pure radial load, open deep groove sphere bearings are your best option. For incorporated lots at broadband, angular get in touch with ball bearings are the means to go.
Cylindrical roller bearings, taper roller bearings, and needle bearings have reasonably lower rate limitations. They’re primarily matched for low-to-medium speed, heavy-load problems.
4. Misalignment Resistance: Do You Need Self-Aligning?
This one typically obtains ignored however it’s incredibly essential. You should think about self-aligning bearings when:
Birthing housing bores don’t line up well
The shaft isn’t tight sufficient and flexes during procedure
The bearing period is lengthy and thermal expansion creates angular misalignment
You’re utilizing separate split real estates (like pillow block bearings)
Spherical roller bearings and spherical ball bearings have scooped external ring raceways. This allows a specific quantity of angular misalignment between the inner and external rings without unsafe side anxiety. They can make up for both dynamic deflection and fixed installment errors.
On the other hand, cylindrical roller bearings, taper roller bearings, and needle bearings have extremely limited self-aligning capacity. Also a tiny angular misalignment can trigger stress concentration at the roller ends, resulting in high side stress that considerably reduce bearing life. Deep groove round bearings do have some self-aligning ability, yet the permitted angle is tiny– surpassing it will certainly minimize life also.
5. Axial Growth Compensation: Fixed End or Floating End?
Long shafts increase and agreement with temperature changes throughout procedure. That implies you require to set up your bearing arrangement with one fixed end and one drifting end.
NU and N series round roller bearings have no flanges on the inner ring (or on one side). This allows the shaft relocation freely in the axial direction relative to the housing– making them suitable as floating-end bearings. NJ and NUP collection can supply axial positioning in one or both directions, so they work well as fixed-end bearings. This configuration is extremely typical in transmissions and electrical motors.

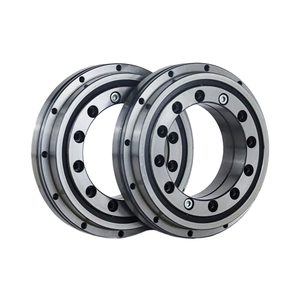

Part 3: BMB Product Line at a Glance

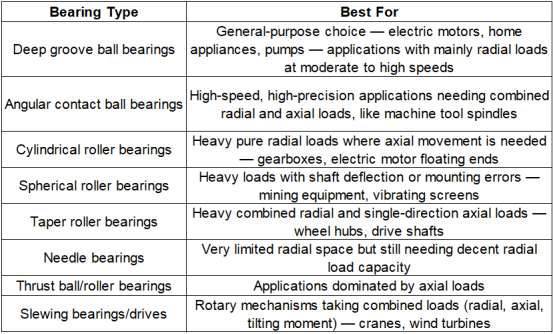

BMB uses a complete range of industrial bearings, covering all the significant kinds we’ve reviewed. This quick reference table connects the choice concepts above directly to specific product categories:
Part Four: Diving Deeper– Accuracy, Clearance, Lubrication, and Seals
( Axial)
1. Precision Grades
Standard accuracy (P0) benefits the vast bulk of general equipment. For precision devices like device tool pins or aerospace components, you’ll require P5 or higher. Tighter accuracy implies tighter dimensional tolerances and better running accuracy– yet also greater expenses.
2. Internal Clearance and Preload
Bearings need to maintain proper internal clearance after installment. Excessive clearance brings about resonance and noise. Too little, and thermal growth can trigger the bearing to confiscate. In diplomatic immunities like machine tool pins, preload (using adverse clearance) is used to improve system rigidness and rotational precision.
3. Lubricating substance Choice
Lubrication is a make-or-break aspect for bearing life. Grease works for most moderate-speed and temperature level applications– it’s basic to seal and can run maintenance-free for extended periods. Oil (oil bath, oil haze, jet lubrication) is better for high-speed or high-temperature conditions, as it dissipates heat more effectively. When picking a lube, examine the speed factor (ndm worth). Don’t simply select based upon optimum rate– the oil you select may not form an appropriate film at lower speeds.
4. Securing Program
Pick the seal type based upon your setting: call seals keep dirt out well however add some rubbing; non-contact seals benefit high speeds yet use less protection against contamination; open bearings rely upon exterior securing systems.
Component Five: Life Calculation– From Theory to Technique
( or Combined Basic Filter Table)
At the end of the day, you require to verify whether your chosen bearing will actually satisfy the anticipated service life. This is where standard rating life estimation is available in.
The standard score life L10 formula (ISO 281 requirement):
For ball bearings: L10 = (C/P) TWO × (10 SIX/ 60n) hours
For roller bearings: L10 = (C/P)^(10/3) × (10 ⁶/ 60n) hours
Where:
C: fundamental dynamic tons ranking (kN)– located in the item magazine
P: equal vibrant lots (kN)– takes both radial and axial lots into account
The equivalent vibrant lots P is computed as: P = X · Fr + Y · Fa
Fr is the radial lots, Fa is the axial load
X and Y are coefficients that rely on birthing type and the Fa/Fr ratio– inspect the brochure for these worths
For more requiring conditions, you can apply adjustment aspects: Ln = a1 × a2 × a3 × L10
a1 is the reliability element (a1 = 1 for 90% reliability, concerning 0.21 for 99%)
a2 is the material factor (high-quality bearing steel can get to 1.5 to 2)
a3 is the operating conditions factor (great lubrication and sanitation can provide 2 to 3)
With this computation, engineers can verify that the selected bearing satisfies the needed service life. It additionally helps compare several options and make data-driven decisions.
This guide has walked you with the total selection course– from evaluating working conditions, to matching the best bearing type, to confirming life span. Recognizing and using this method will aid you make precise, reliable, and economical bearing decisions across a variety of commercial applications.
